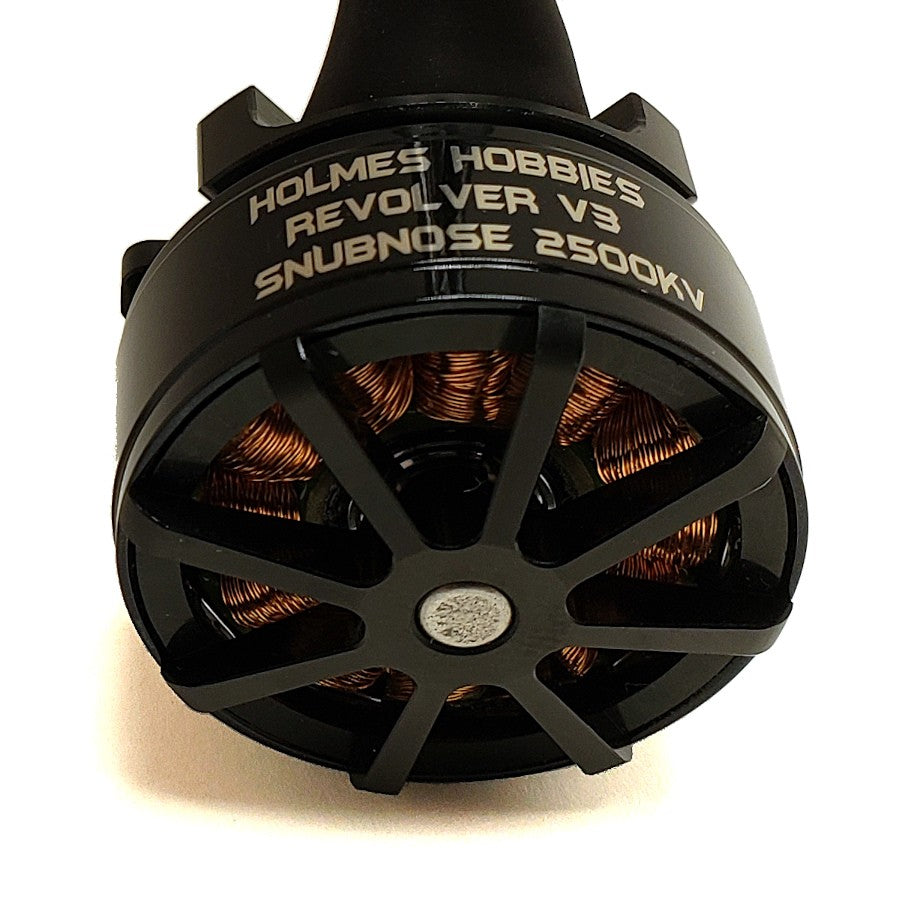

Holmes Hobbies REVOLVER V3 SNUBNOSE 2500KV 10P

Revolver V3 Snubnose 2500Kv 10P

Do you need a small and light motor for your vehicle, but do not want to sacrifice torque? Do you want the finest sensorless brushless low speed control? The Revolver 540 is an extremely torque dense and lightweight choice with exceptional startup and feel that rivals brushed motors!  The Snubnose model is 1/2 the torque of the Standard but is fantastic for lightweight vehicles needing a lower CG.

Now the V3 has more mounting positions, beefier wire retainer, and thicker back iron. The magnetics changes give all models more torque, drag brake, and static hold! If you currently run a Revolver Classic, then you have already experienced the force of v3 magnetics. Improved rpm lock and anti stall characteristics make these a real pleasure to drive with modern Castle Creations and Holmes controllers!

To prevent motor damage, be sure that screws are not inserted more than 3mm into the mounting holes.

Applications:

• 1:10 scale Trail and Scale rigs (SCX10, SCX10.2, Wraith 1.9, Enduro, TRX4 Sport, etc..)
• Competitive RC Rock Crawling (RECON G6; SORRCA; WRCCA; etc..)
• Educational, Recon, or Battle Robots
• 540 Snubnose is NOT recommended for "rock racers" and 2 speed vehicles, such as the TRX4, Wraith, Bomber, etc...

Features:

• Exclusive Holmes magnetics offer buttery smooth industry-leading startup without sacrificing torque
• Our unique V3 housing has smaller volume and weight compared to simple "rebranded" airplane motors
• Magnetic retaining system reduces risk of thrown magnets in the worst of conditions
• Bolts up to standard "540" mount
• Small and light, yet higher torque than 540 brushed motors
• 1/8" shaft fits common R/C pinions
• 200mm 14ga silicon motor leads (does not include bullets)

Specs:

• Brushless DC Outrunner Motor
• 10 pole 12 slot stator
• 2-4S LiPo voltage
• 1/8" D shaft output (standard 540)
• 25mm mounting pattern for M3 screws (standard 540)
• 94g with wires, 79g without
• 35.56mm diameter x 27.4mm long
• 28x10mm stator
